*Voltage rating: 32V *Structure: zinc alloy |
| ITEM NO. | SIZE | COLOR | ITEM NO. | SIZE | COLOR |
| 01F0201-01 | 1A | Grey | 01F0201-08 | 12A | Light Blue |
| 01F0201-02 | 2A | Light Grey | 01F0201-09 | 15A | Blue |
| 01F0201-03 | 3A | Violet | 01F0201-10 | 20A | Yellow |
| 01F0201-04 | 4A | Pink | 01F0201-11 | 25A | Clear |
| 01F0201-05 | Tan | 01F0201-12 | 30A | Green | |
| 01F0201-06 | 7.5A | Brown | 01F0201-13 | 35A | Purple |
| 01F0201-07 | 10A | Red | 01F0201-14 | 40A | Orange |
* Insulating body: Bakelite
Color Code
*Rating Voltage: 32V/125V/250V
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0201A 10PC/SET Plastic box 10000pc 22kg 1.3' 01F0201B 10PC/SET Plastic box 10000pc 20kg 1.3'
Content:
1PC-3A
1PC-5A
1PC-7.5A
2PC-10A
2PC-15A
1PC-20A
1PC-25A
1PC-30A
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0201C 8PC/SET Blister card 50set 500set 14kg 2.7'
Content:
1PC-3A
1PC-5A
1PC-7.5A
2PC-10A
2PC-15A
1PC-20A
1PC-25A
1PC-30A
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0201D 10PC Blister card 50set 500set 14kg 2.7'
*Voltage rating: 3.2V
*Structure: zinc alloy
ITEM NO. SIZE COLOR ITEM NO. SIZE COLOR 01F0202-01 2A Light Grey 01F0202-07 15A Light Blue 01F0202-02 3A Violet 01F0202-08 20A Yellow 01F0202-03 4A Pink 01F0202-09 25A Clear 01F0202-04 5A Tan 01F0202-10 30A Green 01F0202-05 7.5A Brown 01F0202-11 35A Purple 01F0202-06 10A Red
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0202A 10PC/SET Plastic box 10000pc 10kg 1.4'
Content:
3PC-15A
1PC-7.5A
3PC-10A
1PC-20A
1PC-25A
1PC-30A
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0202B 10PC/SET Blister card 10000pc 14kg 3.6'
Voltage rating: 32V
Structure: Zinc alloy
Gold plated terminal available
ITEM NO. SIZE COLOR ITEM NO. SIZE COLOR 01F0203-01 20A Yellow 01F0203-06 60A Blue 01F0203-02 30A Green 01F0203-07 70A Brown 01F0203-03 35A Pink 01F0203-08 80A Clear 01F0203-04 40A Orange 01F0203-09 100A Purple 01F0203-05 50A Red
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0203A 20PC/SET Plastic box 2000set 16kg 1.4'
Content:
1PC-20A
1PC-30A
1PC-40A
2PC-50A
2PC-60A
1PC-70A
1PC-80A
1PC-100A
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0203B 8PC/SET Blister card 500pc 16kg 3.6'

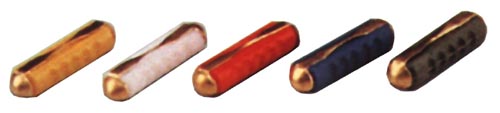

* Material: Spring brass
* Voltage rating: 32V
* Pre-arcing time at: 1.5*IN¡Ù1Hr, 2.5* IN¡Ø1 Min
* Blister card package
AMP COLOR AMP COLOR 5A YELLOW 20A IVORY 8A WHITE 25A BLUE 16A RED 30A GREEN
ITEM NO. SIZE COLOR ITEM NO. SIZE COLOR 01F0204-01 5A Yellow 01F0204-04 20A Ivory 01F0204-02 8A White 01F0204-05 25A Blue 01F0204-03 16A Red 01F0204-06 30A Green
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0204A 10PC/SET Plastic box 10000pc 12kg 1.4'
Content:
1PC-2A
1PC-5A
3PC-8A
1PC-10A
3PC-16A
1PC-25A
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0204B 10PC/SET Blister card 500pc 14kg 2.7'
*Caps: Cylindrical Iron, both nickel and gold finish are available.
*Body: Glass Tube
*Flat Metal: Zinc Alloy
ITEM NO. TYPE AMP. SIZE 01F0205-0101 SFE 4A 14"x5/8"(6.35x16mm)
01F0205-0102 SFE 6A 1/4"x3/4"(6.35x19mm)
01F0205-0103 SFE 7.1/2A 1/4"x7/8"(6.35x22mm)
01F0205-0104 SFE 9A 1/4"x7/8"(6.35x22mm)
01F0205-0105 SFE 14A 1/4"x1.1/16"(6.35x27mm)
01F0205-0106 SFE 20A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0107 SFE 30A 1/4"x1.7/16"(6.35x36mm)
01F0205-0201 AG 1A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0202 AG 1.1/2A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0203 AG 2A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0204 AG 2.1/2A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0205 AG 3A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0206 AG 4A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0207 AG 5A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0208 AG 6A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0209 AG 7.1/2A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0210 AG 8A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0211 AG 10A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0212 AG 15A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0213 AG 16A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0214 AG 20A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0215 AG 25A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0216 AG 30A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0217 AG 35A 1/4"x1.1/4"(6.35x31.75mm)
01F0205-0301 AG 1A 1/4"x1.5/8"(6.35x16mm)
01F0205-0302 AG 1.1/2A 1/4"x1.5/8"(6.35x16mm)
01F0205-0303 AG 2A 1/4"x1.5/8"(6.35x16mm)
01F0205-0304 AG 2.1/2A 1/4"x1.5/8"(6.35x16mm)
01F0205-0305 AG 3A 1/4"x1.5/8"(6.35x16mm)
01F0205-0306 AG 5A 1/4"x1.5/8"(6.35x16mm)
01F0205-0307 AG 6A 1/4"x1.5/8"(6.35x16mm)
01F0205-0308 AG 7.1/2A 1/4"x1.5/8"(6.35x16mm)
01F0205-0309 AG 10A 1/4"x1.5/8"(6.35x16mm)
01F0205-0310 AG 15A 1/4"x1.5/8"(6.35x16mm)
01F0205-0311 AG 20A 1/4"x1.5/8"(6.35x16mm)
01F0205-0312 AG 30A 1/4"x1.5/8"(6.35x16mm)
01F0205-0313 AG 20A 1/4"x1"(6.35x25mm)
01F0205-0314 AG 15A 1/4"x1"(6.35x25mm)
01F0205-0315 AG 30A 1/4"x1"(6.35x25mm)
01F0205-0316 AG 50A 1/4"x1.7/16"(6.35x36mm)
01F0205-0401 AG 2.1/2A 1/4"x7/8"(6.35x22mm)
01F0205-0402 AG 3A 1/4"x7/8"(6.35x23mm)
01F0205-0403 AG 4A 1/4"x7/8"(6.35x24mm)
01F0205-0404 AG 5A 1/4"x7/8"(6.35x25mm)
01F0205-0405 AG 6A 1/4"x7/8"(6.35x26mm)
01F0205-0406 AG 7.1/2A 1/4"x7/8"(6.35x27mm)
01F0205-0407 AG 15A 1/4"x7/8"(6.35x28mm)
01F0205-0408 AG 20A 1/4"x7/8"(6.35x29mm)
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0205A 10SET Paper box 10000pc 21kg 1.2'
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0205B 50SET Plastic box 10000pc 20kg 1.4'
ITEM NO. DESCRIPTION PRESENTATION INNER MASTER G.W. CUFT 01F0205C 10PC/SET Blister card 500set 14kg 2.7'
