Length

Weight

Terminal sizes

(mm)	(in)	(kg)	AWG/MCM	JISmm	DINmm
260	10-1/4	0.43	#10-10,#8,#6	1.25,2.0,5.5,8.0	1.5,2.5,6.0,10.0
285	11-1/4	0.5	#12-16,#16-14,#12-10,#8,#6	2.0,5.5,8.0,14	2.5,6.0,10,16
340	13-3/8	0.8	#12-10,#8,#6,#4	5.5,8,14,22	4-6,10,16,25

ITEM NO.	DESCRIPTION	PRESENTATION	INNER	MASTER	G.W.	CUFT
04H0201-01	260mm	Slide card
04H0201-02	285mm	Slide card
04H0201-03	340mm	Slide card

TERMINAL CRIMPING TOOL

Length

Weight

Terminal sizes

(mm)	(in)	(kg)	AWG/MCM	JISmm	DINmm
540	21-1/4	2.7	#8,6,2#	8,14,22,38	10,16,25,350
598	23-3/8	3.5	#6,4,2,1/10	14,22,38,60	16,25,35,50,70
670	26-3/8	5	#8,6,4,2,1/10-3/0#	8,14,22,38,60,80	16,25,35,50-70,95,120
670	26-3/8	5	#4,#2-1/10,3/0,4/0	22,38,60,80,100	25,35,50-70,95,120

ITEM NO.	DESCRIPTION	PRESENTATION	INNER	MASTER	G.W.	CUFT
04H0202-01	540mm
04H0202-02	598mm
04H0202-03	670mm
04H0202-04	670mm

HYDRAULIC CRIMPING T00L

Output

Weight

Head

Applicable range

Standard dies

(tons)	(kgs)	(kgs)	JIS	AWG	DIN	Male 16-70,95-150,185-400
17	13	9.5	325	750	400	Female 16-25,35,50-70,95,120,150,185-240,300,400
17	14	9.5	325	750	400	10-25,35,50-70,95,120,150,185-240,300,400

ITEM NO.	DESCRIPTION	PRESENTATION	INNER	MASTER	G.W.	CUFT
04H0203-01
04H0203-02

HYDRAULIC CRIMPING TOOL

Output

Weight

Head

Applicable range

Standard dies

(tons)	(kgs)	(kgs)	JIS	AWG	DIN	Male 16-70,95-150,185-140
17	6	4	325	650	400	Female 16-25,35,50-70,95,120,150,185-240,300,400

ITEM NO.	DESCRIPTION	PRESENTATION	INNER	MASTER	G.W.	CUFT
04H0204

HYDRAULIC CRIMPING TOOL

Output

Weight

Head

Applicable range

Standard dies

(tons)	(kgs)	(kgs)	JIS	AWG	DIN

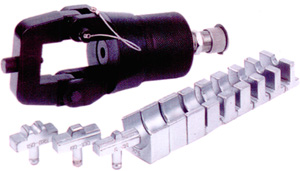

17	6	4	325	650	400	Female 16-25,35,50-70,95,120,150,185-240,300,400

ITEM NO.	DESCRIPTION	PRESENTATION	INNER	MASTER	G.W.	CUFT
04H0205

HYDRAULIC CRIMPING TOOL

Output

Weight

Head

Applicable range

Standard dies

(tons)	(kgs)	(kgs)	JIS	AWG	DIN
20	11	7	400	1000	500	70,95,120,150,185-240,300,400,500

ITEM NO.	DESCRIPTION	PRESENTATION	INNER	MASTER	G.W.	CUFT
04H0206
