4-WAY CRIMPING TOOL
Function:
(1)Crimps Insulated Terminals
(2)Bolt Cutter
(3)Wire Cutter
(4)Wire Stripper
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0401 | 8" | Slide card | 10pc | 100pc | 22.5kg | 1.5' |

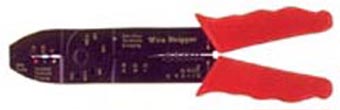

5-WAY CRIMPING TOOL
Function:
(1)Wire Cutter
(2)Bolt Cutter
(3)Crimps Non-Insulated Terminals
(4)Wire Stripper
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0402 | 9" | Slide card | 10pc | 100pc | 23.5kg | 1.6' |
4-WAY CRIMPING TOOL
Function:
(1)Crimps Insulated Terminals
(2)Bolt Cutter
(3)Wire Cutter
(4)Wire Stripper
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0403 | 8-1/2" | Slide card | 10pc | 100pc | 25kg | 1.5' |
4-WAY CRIMPING TOOL
Function:
(1)Crimps Insulated Terminals
(2)Bolt Cutter
(3)Wire Cutter
(4)Wire Stripper
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0404 | 8" | Slide card | 10pc | 100pc | 26kg | 1.6' |
6-WAY CRIMPING TOOL
Function:
(1)"W" Crimps Split and Solid-Barrel Spark Plug and Distributor Terminals
(2)Cuts Wires, also Spark Plug Wires
(3)Twin Lock
(4)Crimps insulated, & non-insulated Terminals
(5)Crimps Ignitions 7-8mm Terminals
(6)Strips sires from AWG 22-10, 6 holes
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0405 | 9-1/2" | Blister card |
5-WAY CRIMPING TOOL
Function:
(1)Wire Cutter
(2)Crimps Insulated Terminals
(3)Bolt Cutter
(4)Crimps Non-insulated Terminals
(5)Wire Stripper
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0406 | 9-1/2" | Blister card |
5-WAY CRIMPING TOOL
Function:
(1)Wire Cutter
(2)Crimps Insulated Terminals
(3)Bolt Cutter
(4)Crimps Non-insulated Terminals
(5)Wire Stripper
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0407 | 9" | Blister card |
HEAVY DUTY CRIMPING TOOL
| 05C0408A
| 05C0408B
| 05C0408C |
Specification:
Length: 8 5/8"
Width: 2 1/2"
Weight: 520g
Crimping Size: ISO (metric): 0.5-1, 1.5-2.5, 4-6mm
AWG (inch): 20-16, 16-12, 12-10 inch
Stripping Size: ISO (metric):6, 4, 2.5, 1.5, 0.5mm
AWG (inch):10, 12, 14, 16, 20 inch
Functions:
1.Press Non-insulated Terminals (05C0408A)
2.Press Insulated Terminals (05C0408B,05C0408C)
3.Cutting Wire
4.Stripping Wire
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0408A | | Color box | | 50pc | 27kg | 0.8' |
| 05C0408B | | Color box | | 50pc | 27kg | 0.8' |
| 05C0408C | | Color box | | 50pc | 27kg | 0.8' |
5-WAY CRIMPING TOOL
With thick PVC coated handle
Function:
(1)Wire Cutter
(2)Bolt Cutter
(3)Crimps Non-Insulated Terminals
(4)Wire Stripper
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 05C0409 | 9.1/2" | Slide Card | 10pc | 100pc | 26kg | 1.6' |
