PROFESSIONAL COAXIAL CRIMPING TOOL

CENTER>PROFESSIONAL COAXIAL CRIMPING TOOL





*8.7" (220mm)





ITEM NO.OOOOPINO PINFOR CRIMPING RG TYPE CABLE


05P0301-01.256'
6.5		.213'
5.41		.68'
1.72		59, 62, 140, 210, belden 8279, 55, 58, 141,
142,223,303,400, fiber optic.


05P0301-02.319'
8.1		.213'
5.41		.187'
4.75		6, 55, 58, 141, 142, 223, 303, 400, 174, fiber
 optic.


05P0301-03.319'
8.1		.256
6.5		.213'
5.41		.068'
1.72		6, 59, 62, 140, 210, belden 8279, 55, 58, 141,
142, 223, 303, 400, fiber optic


05P0301-04.324'
8.3		.256'
6.5		.137'
3.5		.068'
1.72		58, 59, 62, 6, 140, 141, 142, 212, 222,
303, fiber optic belden 8281, 8279, 9231


05P0301-05.255'
6.48		.213'
5.41		.128'
3.25		.100'
2.54		.069'
1.75		.043'
1.09		59, 62, 8X, 140, 210, belden 8279, 55, 58,
141, 174, 223, 303, 400, fiber optic


05P0301-06.178'
4.52		.151'
3.84		.128'
3.25		.078'
1.98		.068
1.72		.042'
1.07		122, 174, 179, 180, 187, 188, 195, fiber optic,
178, 316, belden 8218


05P0301-07.429'
10.9		.100'
2.54		8, 9, 11, 87A, 149, 165, 213, 214, 216,
225, 393, 174, 179, 197, 188, 316, belden


05P0301-08.255'
6.48		.213'
5.41		.187'
4.75		.068'
1.72		55, 58, 59, 62, 140, 141, 142, 210, 223,
174, 303, 400, fiber optic, belden 8279


05P0301-09.311'
7.9		.248'
6.3		.204'
5.2		.09'
2.3		.063'
1.6		58, 59, 6 & 174

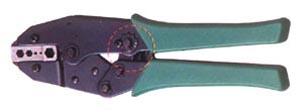

05p0301A.324'
8.22		.255'
6,48		.213'
5.41		.100'
2.5		.068'
1.72		55, 58, 59, 62, 5, 6, 21, 140, 141, 142, 143,
210, 212, 222, 223, 303, 304, 400, belden





TERMINALS CRIMPING TOOL







*8.7" (220mm)






ITEM NO.CRIMPING WIRE SIZEKINDS OF TERMINAL

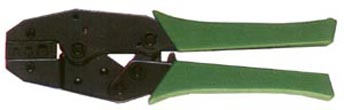

05P0302-01AWG20-18, 16-14, 12-10Inter-locking & non-insulated

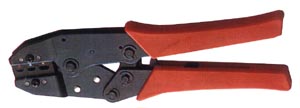

05P0302-02AWG
mm2		22-18, 16-14, 12-10
0.5-1, 1.5-2.5, 4-6		For insulated terminal


05P0302-03AWG
mm2		22-20-18-16-14-12
0.5-0.75-1-1.5-2.5-4		Pin terminal insulated or non-insulated ferrules


05P0302-04AWG
mm2		10, 8, 6
6, 10, 16		Pin terminal insulated or non-insulated ferrules


05P0302-05AWG
DIN mm2
JIS mm2		20-18,16-14,12-10,8
1.5,2.5,6,10
1.25,2,5.5, 8		Non-insulated terminal


05P0302-06AWG
mm2		22-18, 16-14, 12-10
1.25, 2, 5.5		Vinyl insulated w/o copper sleeve


05P0302-07AWG
mm2		14-22Non-insulated open barrel & d-sub, V.35 connectors



FIBER OPTIC CRIMPING TOOL





*8.7" (220mm)






ITEM NO.OOOPIN OPIN O


05P0303-01.195'
4.95		.162'
4.11		.133'
3.38		.068'
1.73		.042'
1.07


05P0303-02.213'
5.41		.178'
4.52		.151'
3.84		.068'
1.73		.042
1.07
