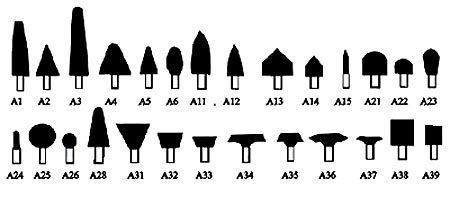

*"A" SHAPED MOUNTED POINTS 14" SHANKS |
| ITEM NO. | STYLE | DIA | THICKNESS | ITEM NO. | STYLE | DIA | THICKNESS |
| 07M0101-01 | A-1 | 3/4" | 2-1/2" | 07M0101-14 | A-23 | 3/4" | 1" |
| 07M0101-02 | A-2 | 1" | 1-1/2" | 07M0101-15 | A-24 | 1/4" | 3/4" |
| 07M0101-03 | A-3 | 7/8" | 2-3/4" | 07M0101-16 | A-25 | 1" | 1" |
| 07M0101-04 | A-4 | 1-1/4" | 1-1/4" | 07M0101-17 | A-26 | 5/8" | 5/8" |
| 07M0101-05 | A-5 | 3/4" | 1-1/8" | 07M0101-18 | A-31 | 1-3/8" | 1" |
| 07M0101-06 | A-6 | 3/4" | 1-1/8" | 07M0101-19 | A-32 | 1" | 5/8" |
| 07M0101-07 | A-11 | 13/16" | 1-3/4" | 07M0101-20 | A-34 | 1-1/2" | 3/8" |
| 07M0101-08 | A-12 | 11/16" | 1-1/4" | 07M0101-21 | A-35 | 1" | 3/8" |
| 07M0101-09 | A-13 | 1-1/8" | 1-1/8" | 07M0101-22 | A-36 | 1-5/8" | 3/8" |
| 07M0101-10 | A-14 | 11/16" | 7/8" | 07M0101-23 | A-37 | 1-1/4" | 1/4" |
| 07M0101-11 | A-15 | 1/4" | 1-1/16" | 07M0101-24 | A-38 | 1" | 1" |
| 07M0101-12 | A-21 | 1" | 1" | 07M0101-25 | A-39 | 3/4" | 3/4" |
| 07M0101-13 | A-22 | 3/4" | 5/8" |
|
|

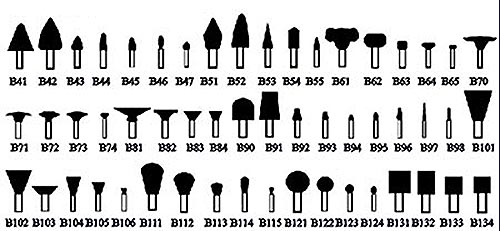

*"B" SHAPED MOUNTED POINTS 1/8" SHANKS |
| ITEM NO. | STYLE | DIA | THICKNESS | ITEM NO. | STYLE | DIA | THICKNESS |
| 07M0102-01 | B-41 | 5/8" | 5/8" | 07M0102-20 | B-90 | 1/2" | 1/2" |
| 07M0102-02 | B-42 | 1/2" | 3/4" | 07M0102-21 | B-91 | 1/2" | 5/8" |
| 07M0102-03 | B-43 | 1/4" | 5/16" | 07M0102-22 | B-92 | 1/4" | 1/4" |
| 07M0102-04 | B-44 | 7/32" | 3/8" | 07M0102-23 | B-94 | 5/16" | 3/16" |
| 07M0102-05 | B-45 | 3/16" | 5/16" | 07M0102-24 | B-97 | 3/32" | 3/8" |
| 07M0102-06 | B-46 | 1/8" | 5/16" | 07M0102-25 | B-98 | 3/32" | 1/4" |
| 07M0102-07 | B-47 | 1/8" | 5/32" | 07M0102-26 | B-103 | 5/8" | 3/16" |
| 07M0102-08 | B-51 | 7/16" | 3/4" | 07M0102-27 | B-104 | 5/16" | 3/8" |
| 07M0102-09 | B-52 | 3/8" | 3/4" | 07M0102-28 | B-105 | 1/4" | 1/4" |
| 07M0102-10 | B-53 | 1/4" | 5/8" | 07M0102-29 | B-106 | 1/8" | 7/64" |
| 07M0102-11 | B-54 | 1/4" | 1/2" | 07M0102-30 | B-115 | 3/32" | 1/8" |
| 07M0102-12 | B-55 | 1/8' | 1/4" | 07M0102-31 | B-121 | 1/2" | 1/2" |
| 07M0102-13 | B-61 | 3/4" | 5/16" | 07M0102-32 | B-122 | 3/8" | 3/8" |
| 07M0102-14 | B-62 | 1/2' | 1/4" | 07M0102-33 | B-123 | 3/16" | 3/16" |
| 07M0102-15 | B-65 | 1/8' | 1/8" | 07M0102-34 | B-124 | 1/8" | 1/8" |
| 07M0102-16 | B-71 | 5/8' | 3/32" | 07M0102-35 | B-131 | 1/2" | 1/2" |
| 07M0102-17 | B-72 | 1/2" | 3/32" | 07M0102-36 | B-132 | 3/8" | 1/2" |
| 07M0102-18 | B-73 | 1/2" | 1/8" | 07M0102-37 | B-133 | 3/8" | 3/8" |
| 07M0102-19 | B-81 | 3/4" | 3/16" | 07M0102-38 | B-134 | 5/16" | 3/8" |
|

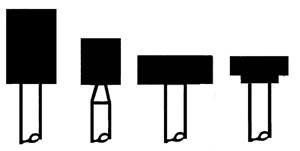

*"W" SHAPED MOUNTED POINTS 1/8" SHANKS |
|
| ITEM NO. | STYLE | DIA | THICKNESS | ITEM NO. | STYLE | DIA | THICKNESS |
| 07M0103-01 | W-144 | 1/8" | 1/4" | 07M0103-24 | W-175 | 3/8" | 3/8" |
| 07M0103-02 | W-145 | 1/8" | 3/8" | 07M0103-25 | W-176 | 3/8" | 1/2" |
| 07M0103-03 | W-146 | 1/8" | 1/2" | 07M0103-26 | W-177 | 3/8" | 3/4" |
| 07M0103-04 | W-148 | 5/32" | 1/16" | 07M0103-27 | W-178 | 3/8" | 1" |
| 07M0103-05 | W-150 | 3/16" | 1/16 | 07M0103-28 | W-181 | 1/2" | 1/16" |
| 07M0103-06 | W-152 | 3/16" | 1/4" | 07M0103-29 | W-182 | 1/2" | 1/8" |
| 07M0103-07 | W-153 | 3/16" | 3/8" | 07M0103-30 | W-183 | 1/2" | 1/4" |
| 07M0103-08 | W-154 | 3/16" | 1/2" | 07M0103-31 | W-184 | 1/2" | 3/8" |
| 07M0103-09 | W-155 | 13/16" | 1/4" | 07M0103-32 | W-185 | 1/2" | 1/2" |
| 07M0103-10 | W-156 | 1/4" | 1/32" | 07M0103-33 | W-186 | 1/2" | 3/4" |
| 07M0103-11 | W-157 | 1/4" | 1/16" | 07M0103-34 | W-190 | 5/8" | 1/16" |
| 07M0103-12 | W-158 | 1/4" | 1/8" | 07M0103-35 | W-191 | 5/8" | 1/8" |
| 07M0103-13 | W-159 | 1/4" | 3/16" | 07M0103-36 | W-193 | 5/8" | 3/8" |
| 07M0103-14 | W-160 | 1/4" | 1/4" | 07M0103-37 | W-194 | 5/8" | 1/2" |
| 07M0103-15 | W-162 | 1/4" | 3/8" | 07M0103-38 | W-195 | 5/8" | 3/4" |
| 07M0103-16 | W-163 | 1/4" | 1/2" | 07M0103-39 | W-200 | 3/4" | 1/8" |
| 07M0103-17 | W-164 | 1/4" | 1/4" | 07M0103-40 | W-201 | 3/4" | 1/4" |
| 07M0103-18 | W-165 | 5/16" | 1/16" | 07M0103-41 | W-202 | 3/4" | 3/8" |
| 07M0103-19 | W-166 | 5/16" | 1/8" | 07M0103-42 | W-203 | 3/4" | 1/2" |
| 07M0103-20 | W-168 | 5/16" | 5/16" | 07M0103-43 | W-204 | 3/4" | 3/4" |
| 07M0103-21 | W-170 | 5/16" | 1/2" | 07M0103-44 | W-215 | 1" | 1/8" |
| 07M0103-22 | W-172 | 3/8" | 1/16" | 07M0103-45 | W-217 | 1" | 3/8" |
| 07M0103-23 | W-174 | 3/8" | 1/4" |
1/4" SHANKS
| ITEM NO. | STYLE | DIA | THICKNESS | ITEM NO. | STYLE | DIA | THICKNESS |
| 07M0104-01 | W-176 | 3/8" | 1/2" | 07M0104-16 | W-208 | 3/4" | 2" |
| 07M0104-02 | W-178 | 3/8" | 1" | 07M0104-17 | W-211 | 7/8" | 3/16" |
| 07M0104-03 | W-179 | 3/8" | 1-1/4" | 07M0104-18 | W-215 | 1" | 1/8" |
| 07M0104-04 | W-183 | 1/2" | 1/4" | 07M0104-19 | W-216 | 1" | 1/4" |
| 07M0104-05 | W-185 | 1/2" | 1/2" | 07M0104-20 | W-217 | 1" | 3/8" |
| 07M0104-06 | W-186 | 1/2" | 3/4" | 07M0104-21 | W-220 | 1" | 1" |
| 07M0104-07 | W-187 | 1/2" | 1" | 07M0104-22 | W-221 | 1" | 1-1/2" |
| 07M0104-08 | W-188 | 1/2" | 1-1/2" | 07M0104-23 | W-222 | 1" | 2" |
| 07M0104-09 | W-189 | 1/2" | 2" | 07M0104-24 | W-224 | 1" | 3" |
| 07M0104-10 | W-196 | 5/8" | 1" | 07M0104-25 | W-225 | 1-1/4" | 1/4" |
| 07M0104-11 | W-197 | 5/8" | 2" | 07M0104-26 | W-226 | 1-1/4" | 3/8" |
| 07M0104-12 | W-200 | 3/4" | 1/8" | 07M0104-27 | W-227 | 1-1/4" | 1/2" |
| 07M0104-13 | W-204 | 3/4" | 3/4" | 07M0104-28 | W-235 | 1-1/2" | 1/4" |
| 07M0104-14 | W-205 | 3/4" | 1" | 07M0104-29 | W-236 | 1-1/2" | 1/2" |
| 07M0104-15 | W-207 | 3/4" | 1-1/2" | 07M0104-30 | W-237 | 1-1/2" | 1" |
