HEAVY DUTY 6" BELT & 12" DISC SANDER
 |  |  |
| 10B0101A | 10B0101B | Quick belt loosening is made by simply turning a handle and micro-adjust knobs. |
SPECIAL FEATURE:
* The belt can be set vertically, horizontally and tilted for bevel sanding.
* Convenient adjustment of belt tracking.
* Convenient adjustment of belt tensioning. (micro-adjustable)
* Disc and belt table tilt 45o.
* Cast iron table is precision ground.
* Graduated scale correctly indicates tilting degree of table.
* Totally enclosed fan cooled motor.
* Choice of open or enclosed type stand.
* 4" diameter dust chute. Single dust port system.
 |  |  |
| Disc table tilts 45 degree, sanding disc is preciely balanced | Belt operates vertically | CE version switch |
 |  |  |
| Dia.4" Dust chute. Single dust port system | Belt operates horizontally. | Belt table tilts 45 degree |
SPECIFICATION
| Item No. | 10B0101A | 10B0101B |
| Stand Type | Open Stand | Cabinet Stand |
| Sanding belt (W x L) | 6" x 48" | 6" x 48" |
| Table tilt | 45 degree | 45 degree |
| Dust chute diameter | 4" | 4" |
| Belt table (W x D) | 12 - 1/2" x 7" | 12 - 1/2" x 7" |
| Disc table | 16 - 1/2" x 10" | 16 - 1/2" x 10" |
| Motor | 1 - 1/2", 1Ph | 1 - 1/2", 1Ph |
| Belt speed (SFPM) | 2500 R.P.M. | 2500 R.P.M. |
| Net weight (approx): Machine | 105 kgs | 105 kgs |
| Net weight (approx): Stand | 12 kgs | 22 kgs |
| Gross weight (approx): Machine | 115 kgs | 115 kgs |
| Gross weight (approx): Stand | 13 kgs | 23 kgs |
| Packing size : Machine (LxWxH) | 30.3"x20.4"x15.2" (5.43') | 30.3"x20.4"x15.2" (5.43') |
| Packing size : Stand (LxWxH) | 26"x 17"x 4.5" (1.2') | 19.2"x 17.1"x30.1" (5.71') |
BELT & DISC SANDER/GRINDER

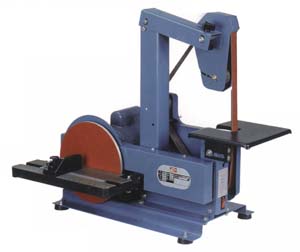

| 10B0102
1" BELT & 8" DISC SANDER/GRINDER |
Sharpening
Adjust table at the required sharpening angle and tighten securely.
Using a "C-Clamp" attached an auxillary piece of wood to support
while sharpening. Notch back of auxillary piece of wood so that
top edge is approximately 1/16" from sanding belt.
Occasionally lubricate with light machine oil all wheel.
Polishing & Contour Sanding
Remove platen and adjust upper idler wheel to rear as to not come
in contact with the belt and workpiece. Move the workpiece
against the belt. The belt will follow the contour.
