14" WOOD CUTTING BAND SAW
* Table tilts 45 degree(right) and 10 degree(left) for bevel cutting.
* Miter gauge swivels 45 degree ( right and left ).
* Cast iron table, surface is precision ground.
* Aluminum rip fence is optional.
* Riser block kit is available to increase cutting capacity up to 12" (Optional).
* Convenient blade tension adjustment by turning a knob.
* UL / CSA Removable key switch prevents unauthorized operation.
* Upper and lower blade guides.
* Upper and lower aluminum wheels are dynamically balanced for maximum running smoothness.
Table tilting right45 degreeTable tilting left 10 degreeBlade tension adjustment knob
Rip fence, miter gage (Optional)Riser block kit (Optional)Four speed kit (2 speed also available)
SPECIFICATION
Item No.10B0301A10B0301B10B0301C
Motor1/2HP or 3/4HP (4P)1/2HP or 3/4HP (4P)1/2HP or 3/4HP (4P)
Wheel diameter14" (356mm)14" (356mm)14" (356mm)
Table size (L x W)350x353x26mm350x353x26mm350x353x26mm
Table height42-5/8" (1083mm)42-5/8" (1083mm)42-5/8" (1083mm)
Working capacity (H x W)5-1/2x13-3/4" (140x349mm)5-1/2x13-3/4" (140x349mm)5-1/2x13-3/4" (140x349mm)
Blade sizeW-9.5x0.5x2350mm(92 1/2")W-9.5x0.5x2350mm(92 1/2")W-9.5x0.5x2350mm(92-1/2")6TPI
M-9.5x0.5x2350mm(92-1/2")14TPI
Spindle speed (RPM)780/60, 650/50hz.780/210/60HE, 650/175/50hz.780/460/290/170/60hz.
650/383/242/142/50hz.
Miter gage tiltingLeft 45 degree, Right 45 degreeLeft 45 degree, Right 45 degreeLeft 45 degree, Right 45 degree
Table tiltingLeft 10 degree, Right 45 degree Left 10 degree, Right 45 degreeLeft 10 degree, Right 45 degree
Machine size (L x W x H)20"x25"x65" (508x635x1650mm)20"x25"x65" (508x635x1650mm)20"x25"x65" (508x635x1650mm)
N.W. / G.W. (machine)70kgs/72kgs75kgs/ 78kgs78kgs/ 81kgs
Packing size42"x18"x11.5"43.7"x20"x15"43.7"x20"x15"
Carton (LxWxH)(1067x457x292mm) (5.03cuft)(1110x510x380mm) (7.6cuft)(1110x510x380mm) (7.6cuft)

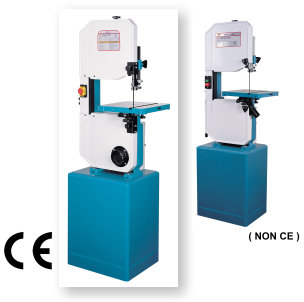

14" HEAVY DUTY WOOD CUTTING BAND SAW
10B0302
* Precision ground cast iron table.
* Lower blade guard and safety device.
* Table tilts 45o rightward and 10o leftward.
* Rip fence attachment available.
* Easy assembly speed change device.
* Long blade tension adjustment knob.
* 2 1/2" dust chute.
* Micro-adjustment upper and lower blade guide.
* Quick plug-in power cord connector.
* Gear box driving for 8 speed cutting.
* Non-CE 60Hz.
Table tilting 45 degree(right) and 10 degree(left)Speed reducer kit (2, 3, 4 speeds available)Micrometric adjustment knob for upper blade guide
Blade tension adjustment knobMicrometric adjustment knob for lower blade guideDia.2-1/2" dust chute
Rip fence (Optional)Miter gage (Optional)CE version NVR switch
SPECIFICATION
Item No.10B0302A10B0302B10B0302C
Motor50 HZ 0.55KW50 HZ 0.55KW50 HZ 0.55KW
Wheel diameter356 mm (14") 356 mm (14") 356 mm (14")
Table size (L x W)356 x 356 x 38.1mm356 x 356 x 38.1mm356 x 356 x 38.1mm
Table height1118mm (44")1118mm (44")1118mm (44")
Working capacity (H x W)155 (H) x 340 (W) mm155 (H) x 340 (W) mm155 (H) x 340 (W) mm
Blade sizeW-9 x 0.5 x 2350 mm 6TPIW-9 x 0.5 x 2350 mm 6TPIW-9 x 0.5 x 2350 mm 6TPI
M-9.5 x 0.5 x 2350 mm 14TPI
Table tiltingLeft 10 degree, Right 45 degree Left 10 degree, Right 45 degreeLeft 10 degree, Right 45 degree
Miter gage tiltingLeft 45 degree, Right 45 degreeLeft 45 degree, Right 45 degreeLeft 45 degree, Right 45 degree
Rip FenceOptionalOptional Optional
Spindle speed (RPM)650 one speed650/384/240/142 4 speed650/60/42/32/24/18/12/9 8 speed
Machine size (L x W x H)26.8" x 17.7" x 28"26.8" x 17.7" x 28"26.8" x 17.7" x 28"
Packing size(machine)45" x 20.5" x 17.5"(9.34 cuft)45" x 20.5" x 17.5"(9.34 cuft)45" x 20.5" x 17.5"(9.34 cuft)
Packing size(stand)21" x 16.5" x 26" (5.21 cuft)21" x 16.5" x 26" (5.21 cuft)21" x 16.5" x 26" (5.21 cuft)
N.W. / G.W. (machine)55 kgs / 59 kgs64 kgs / 68 kgs80 kgs / 86 kgs
N.W. / G.W. (stand)36 kgs / 38 kgs36 kgs / 40 kgs38 kgs / 40 kgs

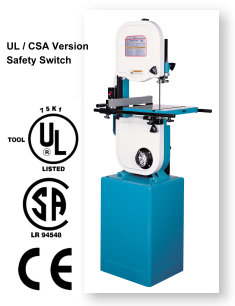

14" HEAVY DUTY WOOD CUTTING BAND SAW
10B0303
* Precision ground cast iron table.
* Micro-adjustable upper blade guide.
* Lower blade guard and safety device.
* Table tilts 45o rightward and 10o leftward.
* Rip fence attachment available.
* Easy assembly speed change device.
* Riser block kit attachment is available to increase cutting capacity up to 12".
* Long blade tension adjustment knob.
* Quick plug-in power cord connector.
* Dia.4" Dust port.
* NVR switch for CE version.
* Removable key safety switch for UL / CSA model.
Table tilting 45 degree(right) and 10 degree(left)Micrometric adjustment knob for upper blade guideSpeed reducer kit (2, 3, 4 speeds available)
Blade tension adjustment knobRiser block kit(Optional)Rip fence (Optional)
Dia.4" dust chuteMiter gage (Optional)CE version NVR switch
SPECIFICATION
Item No.10B0303A10B0303B10B0303C10B0303D
Motor3/4 HP 60Hz, 0.55kw 50hz3/4 HP 60Hz, 0.55kw 50hz3/4 HP 60Hz, 0.55kw 50hz3/4 HP 60Hz, 0.55kw 50hz
Wheel diameter356 mm (14") 356 mm (14") 356 mm (14")356 mm (14")
Table size (L x W)356 x 356 x 38.1mm356 x 356 x 38.1mm356 x 356 x 38.1mm356 x 356 x 38.1mm
Table height1118mm (44")1118mm (44")1118mm (44")1118mm (44")
Table tiltingLeft 10 degree, Right 45 degree Left 10 degree, Right 45 degreeLeft 10 degree, Right 45 degreeLeft 10 degree, Right 45 degree
Miter gage tiltingLeft 45 degree, Right 45 degreeLeft 45 degree, Right 45 degreeLeft 45 degree, Right 45 degreeLeft 45 degree, Right 45 degree
Working capacity (H x W) 6" x 13-3/4" (152 x 349 mm) 6" x 13-3/4" (152 x 349 mm)6" x 13-3/4" (152 x 349 mm)6" x 13-3/4" (152 x 349 mm)
Blade sizeW9.5 x 0.5 x2350mm(6 TPI)W9.5 x 0.5 x2350mm(6 TPI)W9.5 x 0.5 x2350mm(6 TPI)W9.5 x 0.5 x2350mm(6 TPI)
M9.5 x 0.5 x 2350mm(14 TPI)
Upper blade guideMicron - adjustableMicron - adjustablelMicron - adjustable Micron - adjustable
Spindle speed (RPM)780/60Hz, 650/50Hz780/210780/460/290780/460/290/170
V-belt sizeA50A22,A38,A50A22, A38A22, A38
Machine size (L x W x H)28-1/2" x 18-1/8" x 68-1/4"28-1/2" x 18-1/8" x 68-1/4"28-1/2" x 18-1/8" x 68-1/4"28-1/2" x 18-1/8" x 68-1/4"
Packing size(machine)43.5" x 20.1" x 15.3"(7.74 cuft)43.5" x 20.1" x 15.3"(7.74 cuft)43.5" x 20.1" x 15.3"(7.74 cuft)43.5" x 20.1" x 15.3"(7.74 cuft)
Packing size(stand)18" x 16" x 26.3" (4.38 cuft)18" x 16" x 26.3" (4.38 cuft)18" x 16" x 26.3" (4.38 cuft)18" x 16" x 26.3" (4.38 cuft)
N.W. / G.W. (machine)50 kgs / 54 kgs60 kgs / 64 kgs63 kgs / 67 kgs65 kgs / 69 kgs
N.W. / G.W. (stand)34 kgs / 36 kgs35 kgs / 37 kgs38 kgs / 40 kgs40 kgs / 42 kgs
