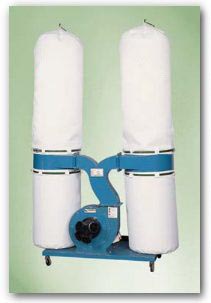

Features: * Strong suction ability. * Multiple connections available. * Lower dust exit design. * Could use normal bags for collection. Fit for Copper/Aluminum cutting machine, sanding machine, planner, and wood working machines...etc. Applications: Dust collection, chip collection to reduce air pollution. |
| Item No. | 10D0201 |
| Van Diameter | 12 |
| Motor | 3HP |
| Hopper Size | 350mm |
| Air Suction | 4" x 4 Holes |
| Air Delivery | 45 M3/min. |
| Air Speed | 22 - 25M/sec |
| Packing | 960x740x65-mm |
| ITEM NO. | DESCRIPTION | PRESENTATION | MASTER | N.W. | G.W. | CUFT |
| 10D0201 | 3HP, 350mm Hopper | Strong Carton | 1 set | 80kgs | 85kgs | 16.3' |

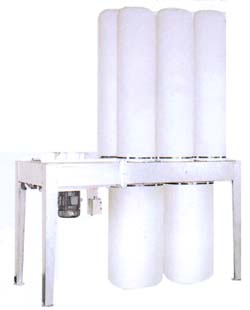

FIXED DUST COLLECTOR
| Item No. | 10D0202 |
| Van Diameter | 12 |
| Motor | 5HP (OR, 7.5HP) |
| Air Suction | 5" x 5 Holes (OR, 6" x 5 Holes) |
| Air Delivery | 182 M3/min. |
| Air Speed | 43M/sec |
| Collecting Tube | 400mmx2.6Mx6pcs |
| Collecting Bag | 1800mmx6 + 610mmx2pcs |
| Machine (wood strip package) | 115x90x76-cm (NW 100kgs, GW 120kgs) |
| Accessory (paper carton package) | 150x110x39-cm (NW 120kgs, GW 130kgs |
| ITEM NO. | DESCRIPTION | PRESENTATION | MASTER | N.W. | G.W. | CUFT |
| 10D0202 | 5HP, 5" x 5 Holes | Wood Strips Case | 1 set | 220kgs | 250kgs | 50.5' |
