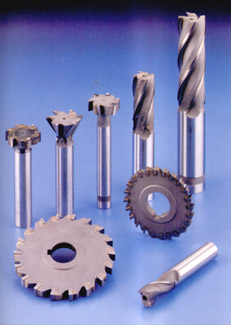

Solid Carbide T-Type Cutters
| ITEM NO. | Dia | Thick | Sha-D | Teeth | Length | Price |
| 11m0201-1 | 16 | 3 | 12 | 4 | 100 |
| 11m0201-2 | 16 | 4 | 12 | 4 | 100 |
| 11m0201-3 | 20 | 4 | 12 | 4 | 100 |
| 11m0201-4 | 20 | 5 | 12 | 4 | 100 |
| 11m0201-5 | 20 | 6 | 12 | 4 | 100 |
| 11m0201-6 | 25 | 4 | 16 | 6 | 120 |
| 11m0201-7 | 25 | 5 | 16 | 6 | 120 |
| 11m0201-8 | 25 | 6 | 16 | 6 | 120 |
| 11m0201-9 | 25 | 7 | 16 | 6 | 120 |
| 11m0201-10 | 25 | 8 | 16 | 6 | 120 |
| 11m0201-11 | 30 | 5 | 16 | 6 | 120 |
| 11m0201-12 | 30 | 6 | 16 | 6 | 120 |
| 11m0201-13 | 30 | 8 | 16 | 6 | 120 |
| 11m0201-14 | 30 | 10 | 16 | 6 | 120 |
| 11m0201-15 | 30 | 12 | 16 | 6 | 120 |
| 11m0201-16 | 32 | 6 | 16 | 6 | 120 |
| 11m0201-17 | 32 | 8 | 16 | 6 | 120 |
| 11m0201-18 | 32 | 10 | 16 | 6 | 120 |
| 11m0201-19 | 32 | 12 | 16 | 6 | 120 |
| 11m0201-20 | 35 | 6 | 16 | 6 | 120 |
| 11m0201-21 | 35 | 8 | 16 | 6 | 120 |
| 11m0201-22 | 35 | 10 | 16 | 6 | 120 |
| 11m0201-23 | 40 | 6 | 25 | 6 | 140 |
| 11m0201-24 | 40 | 8 | 25 | 6 | 140 |
| 11m0201-25 | 40 | 10 | 25 | 6 | 140 |
| 11m0201-26 | 45 | 8 | 25 | 6 | 140 |
| 11m0201-27 | 45 | 10 | 25 | 6 | 140 |
| 11m0201-28 | 50 | 8 | 25 | 8 | 140 |
| 11m0201-29 | 50 | 10 | 25 | 8 | 140 |
| 11m0201-30 | 50 | 12 | 25 | 8 | 140 |
Side milling Cutters with Braxed Carbide
| ITEM NO. | Dia | Thick | Inn. | Teeth | Teeth | Price |
| 11m0202-1 | 75 | 3 | 25.4 | 14 | 22 |
| 11m0202-2 | 75 | 4 | 25.4 | 14 | 22 |
| 11m0202-3 | 75 | 5 | 25.4 | 14 | 22 |
| 11m0202-4 | 75 | 6 | 25.4 | 14 | 22 |
| 11m0202-5 | 75 | 7 | 25.4 | 14 | 22 |
| 11m0202-6 | 75 | 8 | 25.4 | 14 | 22 |
| 11m0202-7 | 75 | 9 | 25.4 | 14 | 22 |
| 11m0202-8 | 75 | 10 | 25.4 | 14 | 22 |
| 11m0202-9 | 75 | 11 | 25.4 | 14 | 22 |
| 11m0202-10 | 75 | 12 | 25.4 | 14 | 22 |
| 11m0202-11 | 75 | 14 | 25.4 | 14 | 22 |
| 11m0202-12 | 75 | 16 | 25.4 | 14 | 22 |
| 11m0202-13 | 75 | 20 | 25.4 | 14 | 22 |
| 11m0202-14 | 100 | 3 | 25.4 | 16 | 28 |
| 11m0202-15 | 100 | 4 | 25.4 | 16 | 28 |
| 11m0202-16 | 100 | 5 | 25.4 | 16 | 28 |
| 11m0202-17 | 100 | 6 | 25.4 | 16 | 28 |
| 11m0202-18 | 100 | 7 | 25.4 | 16 | 28 |
| 11m0202-19 | 100 | 8 | 25.4 | 16 | 28 |
| 11m0202-20 | 100 | 9 | 25.4 | 16 | 28 |
| 11m0202-21 | 100 | 10 | 25.4 | 16 | 28 |
| 11m0202-22 | 100 | 11 | 25.4 | 16 | 28 |
| 11m0202-23 | 100 | 12 | 25.4 | 16 | 28 |
| 11m0202-24 | 100 | 14 | 25.4 | 16 | 28 |
| 11m0202-25 | 100 | 16 | 25.4 | 16 | 28 |
| 11m0202-26 | 100 | 20 | 25.4 | 16 | 28 |
| 11m0202-27 | 125 | 4 | 25.4 | 18 | 32 |
| 11m0202-28 | 125 | 6 | 25.4 | 18 | 32 |
| 11m0202-29 | 125 | 8 | 25.4 | 18 | 32 |
| 11m0202-30 | 125 | 10 | 25.4 | 18 | 32 |
| 11m0202-31 | 125 | 12 | 25.4 | 18 | 32 |
| 11m0202-32 | 150 | 4 | 25.4 | 20 | 36 |
| 11m0202-33 | 150 | 6 | 25.4 | 20 | 36 |
| 11m0202-34 | 150 | 8 | 25.4 | 20 | 36 |
| 11m0202-35 | 150 | 10 | 25.4 | 20 | 36 |
| 11m0202-36 | 150 | 12 | 25.4 | 20 | 36 |
|

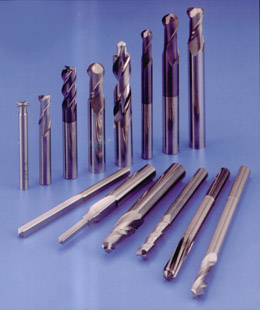

Carbide Endmills Standard
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0203A-1 | 1.0 | 6 | 2.5 | 50 |
| 11m0203A-2 | 1.5 | 6 | 4 | 50 |
| 11m0203A-3 | 2.0 | 6 | 5 | 50 |
| 11m0203A-4 | 2.5 | 6 | 6 | 50 |
| 11m0203A-5 | 3.0 | 6 | 8 | 50 |
| 11m0203A-6 | 3.5 | 6 | 9 | 50 |
| 11m0203A-7 | 4.0 | 6 | 10 | 50 |
| 11m0203A-8 | 4.5 | 6 | 11 | 50 |
| 11m0203A-9 | 5.0 | 6 | 13 | 50 |
| 11m0203A-10 | 5.5 | 6 | 14 | 50 |
| 11m0203A-11 | 6.0 | 6 | 15 | 50 |
| 11m0203A-12 | 6.5 | 8 | 18 | 60 |
| 11m0203A-13 | 7.0 | 8 | 18 | 60 |
| 11m0203A-14 | 7.5 | 8 | 18 | 60 |
| 11m0203A-15 | 8.0 | 8 | 20 | 60 |
| 11m0203A-16 | 8.5 | 10 | 20 | 75 |
| 11m0203A-17 | 9.0 | 10 | 21 | 75 |
| 11m0203A-18 | 9.5 | 10 | 21 | 75 |
| 11m0203A-19 | 10.0 | 10 | 25 | 75 |
| 11m0203A-20 | 11.0 | 12 | 25 | 75 |
| 11m0203A-21 | 12.0 | 12 | 25 | 75 |
| 11m0203A-22 | 14.0 | 16 | 35 | 100 |
| 11m0203A-23 | 16.0 | 16 | 40 | 100 |
| 11m0203A-24 | 18.0 | 20 | 40 | 100 |
| 11m0203A-25 | 20.0 | 20 | 40 | 100 |
| 11m0203A-26 | 22.0 | 22 | 40 | 100 |
| 11m0203A-27 | 25.0 | 25 | 45 | 120 |
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0203B-1 | 1.0 | 6 | 2.5 | 50 |
| 11m0203B-2 | 1.5 | 6 | 4 | 50 |
| 11m0203B-3 | 2.0 | 6 | 5 | 50 |
| 11m0203B-4 | 2.5 | 6 | 6 | 50 |
| 11m0203B-5 | 3.0 | 6 | 8 | 50 |
| 11m0203B-6 | 3.5 | 6 | 9 | 50 |
| 11m0203B-7 | 4.0 | 6 | 10 | 50 |
| 11m0203B-8 | 4.5 | 6 | 11 | 50 |
| 11m0203B-9 | 5.0 | 6 | 13 | 50 |
| 11m0203B-10 | 5.5 | 6 | 14 | 50 |
| 11m0203B-11 | 6.0 | 6 | 15 | 50 |
| 11m0203B-12 | 6.5 | 8 | 18 | 60 |
| 11m0203B-13 | 7.0 | 8 | 18 | 60 |
| 11m0203B-14 | 7.5 | 8 | 18 | 60 |
| 11m0203B-15 | 8.0 | 8 | 20 | 60 |
| 11m0203B-16 | 8.5 | 10 | 20 | 75 |
| 11m0203B-17 | 9.0 | 10 | 21 | 75 |
| 11m0203B-18 | 9.5 | 10 | 21 | 75 |
| 11m0203B-19 | 10.0 | 10 | 25 | 75 |
| 11m0203B-20 | 11.0 | 12 | 25 | 75 |
| 11m0203B-21 | 12.0 | 12 | 25 | 75 |
| 11m0203B-22 | 14.0 | 16 | 35 | 100 |
| 11m0203B-23 | 16.0 | 16 | 40 | 100 |
| 11m0203B-24 | 18.0 | 20 | 40 | 100 |
| 11m0203B-25 | 20.0 | 20 | 40 | 100 |
| 11m0203B-26 | 22.0 | 22 | 40 | 100 |
| 11m0203B-27 | 25.0 | 25 | 45 | 120 |
Carbide Endmills Long Flute
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0204A-1 | 3 | 6 | 15 | 60 |
| 11m0204A-2 | 4 | 6 | 20 | 60 |
| 11m0204A-3 | 5 | 6 | 25 | 75 |
| 11m0204A-4 | 6 | 6 | 30 | 75 |
| 11m0204A-5 | 8 | 8 | 35 | 90 |
| 11m0204A-6 | 10 | 10 | 45 | 100 |
| 11m0204A-7 | 12 | 12 | 45 | 100 |
| 11m0204A-8 | 14 | 14 | 70 | 150 |
| 11m0204A-9 | 16 | 16 | 70 | 150 |
| 11m0204A-10 | 18 | 18 | 75 | 150 |
| 11m0204A-11 | 20 | 20 | 75 | 150 |
| 11m0204A-12 | 22 | 22 | 80 | 150 |
| 11m0204A-13 | 25 | 25 | 80 | 150 |
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0204B-1 | 3 | 6 | 15 | 60 |
| 11m0204B-2 | 4 | 6 | 20 | 60 |
| 11m0204B-3 | 5 | 6 | 25 | 75 |
| 11m0204B-4 | 6 | 6 | 30 | 75 |
| 11m0204B-5 | 8 | 8 | 35 | 90 |
| 11m0204B-6 | 10 | 10 | 45 | 100 |
| 11m0204B-7 | 12 | 12 | 45 | 100 |
| 11m0204B-8 | 14 | 14 | 70 | 150 |
| 11m0204B-9 | 16 | 16 | 70 | 150 |
| 11m0204B-10 | 18 | 18 | 75 | 150 |
| 11m0204B-11 | 20 | 20 | 75 | 150 |
| 11m0204B-12 | 22 | 22 | 80 | 150 |
| 11m0204B-13 | 25 | 25 | 80 | 150 |
Carbide Endmills Long Shank
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0205A-1 | 3 | 6 | 8 | 60 |
| 11m0205A-2 | 4 | 6 | 10 | 60 |
| 11m0205A-3 | 5 | 6 | 13 | 75 |
| 11m0205A-4 | 6 | 6 | 15 | 75 |
| 11m0205A-5 | 8 | 8 | 20 | 90 |
| 11m0205A-6 | 10 | 10 | 25 | 100 |
| 11m0205A-7 | 12 | 12 | 25 | 100 |
| 11m0205A-8 | 14 | 14 | 35 | 150 |
| 11m0205A-9 | 16 | 16 | 40 | 150 |
| 11m0205A-10 | 18 | 18 | 40 | 150 |
| 11m0205A-11 | 20 | 20 | 40 | 150 |
| 11m0205A-12 | 22 | 22 | 40 | 150 |
| 11m0205A-13 | 25 | 25 | 45 | 150 |
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0205B-1 | 3 | 6 | 8 | 60 |
| 11m0205B-2 | 4 | 6 | 10 | 60 |
| 11m0205B-3 | 5 | 6 | 13 | 75 |
| 11m0205B-4 | 6 | 6 | 15 | 75 |
| 11m0205B-5 | 8 | 8 | 20 | 90 |
| 11m0205B-6 | 10 | 10 | 25 | 100 |
| 11m0205B-7 | 12 | 12 | 25 | 100 |
| 11m0205B-8 | 14 | 14 | 35 | 150 |
| 11m0205B-9 | 16 | 16 | 40 | 150 |
| 11m0205B-10 | 18 | 18 | 40 | 150 |
| 11m0205B-11 | 20 | 20 | 40 | 150 |
| 11m0205B-12 | 22 | 22 | 40 | 150 |
| 11m0205B-13 | 25 | 25 | 45 | 150 |
Carbide Endmills Taper Flute
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0206A |
Carbide Ball Endmills Standard
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0207A-1 | 1.0 | 6 | 2.5 | 50 |
| 11m0207A-2 | 1.5 | 6 | 4 | 50 |
| 11m0207A-3 | 2.0 | 6 | 5 | 50 |
| 11m0207A-4 | 2.5 | 6 | 6 | 50 |
| 11m0207A-5 | 3.0 | 6 | 8 | 50 |
| 11m0207A-6 | 3.5 | 6 | 9 | 50 |
| 11m0207A-7 | 4.0 | 6 | 10 | 50 |
| 11m0207A-8 | 4.5 | 6 | 11 | 50 |
| 11m0207A-9 | 5.0 | 6 | 13 | 50 |
| 11m0207A-10 | 5.5 | 6 | 14 | 50 |
| 11m0207A-11 | 6.0 | 6 | 15 | 50 |
| 11m0207A-12 | 6.5 | 8 | 18 | 60 |
| 11m0207A-13 | 7.0 | 8 | 18 | 60 |
| 11m0207A-14 | 7.5 | 8 | 18 | 60 |
| 11m0207A-15 | 8.0 | 8 | 20 | 60 |
| 11m0207A-16 | 8.5 | 10 | 20 | 75 |
| 11m0207A-17 | 9.0 | 10 | 21 | 75 |
| 11m0207A-18 | 9.5 | 10 | 21 | 75 |
| 11m0207A-19 | 10.0 | 10 | 25 | 75 |
| 11m0207A-20 | 11.0 | 12 | 25 | 75 |
| 11m0207A-21 | 12.0 | 12 | 25 | 75 |
| 11m0207A-22 | 14.0 | 16 | 35 | 100 |
| 11m0207A-23 | 16.0 | 16 | 40 | 100 |
| 11m0207A-24 | 18.0 | 20 | 40 | 100 |
| 11m0207A-25 | 20.0 | 20 | 40 | 100 |
| 11m0207A-26 | 22.0 | 22 | 40 | 100 |
| 11m0207A-27 | 25.0 | 25 | 45 | 120 |
Carbide Ball Endmills Long Shank
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0207B-1 | 3 | 6 | 8 | 60 |
| 11m0207B-2 | 4 | 6 | 10 | 60 |
| 11m0207B-3 | 5 | 6 | 13 | 75 |
| 11m0207B-4 | 6 | 6 | 15 | 75 |
| 11m0207B-5 | 8 | 8 | 20 | 90 |
| 11m0207B-6 | 10 | 10 | 25 | 100 |
| 11m0207B-7 | 12 | 12 | 25 | 100 |
| 11m0207B-8 | 14 | 14 | 35 | 150 |
| 11m0207B-9 | 16 | 16 | 40 | 150 |
| 11m0207B-10 | 18 | 18 | 40 | 150 |
| 11m0207B-11 | 20 | 20 | 40 | 150 |
| 11m0207B-12 | 22 | 22 | 40 | 150 |
| 11m0207B-13 | 25 | 25 | 45 | 150 |
Carbide Endmills Standard
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0208A-1 | 1.0 | 6 | 2.5 | 50 |
| 11m0208A-2 | 1.5 | 6 | 4 | 50 |
| 11m0208A-3 | 2.0 | 6 | 5 | 50 |
| 11m0208A-4 | 2.5 | 6 | 6 | 50 |
| 11m0208A-5 | 3.0 | 6 | 8 | 50 |
| 11m0208A-6 | 3.5 | 6 | 9 | 50 |
| 11m0208A-7 | 4.0 | 6 | 10 | 50 |
| 11m0208A-8 | 4.5 | 6 | 11 | 50 |
| 11m0208A-9 | 5.0 | 6 | 13 | 50 |
| 11m0208A-10 | 5.5 | 6 | 14 | 50 |
| 11m0208A-11 | 6.0 | 6 | 15 | 50 |
| 11m0208A-12 | 6.5 | 8 | 18 | 60 |
| 11m0208A-13 | 7.0 | 8 | 18 | 60 |
| 11m0208A-14 | 7.5 | 8 | 18 | 60 |
| 11m0208A-15 | 8.0 | 8 | 20 | 60 |
| 11m0208A-16 | 8.5 | 10 | 20 | 75 |
| 11m0208A-17 | 9.0 | 10 | 21 | 75 |
| 11m0208A-18 | 9.5 | 10 | 21 | 75 |
| 11m0208A-19 | 10.0 | 10 | 25 | 75 |
| 11m0208A-20 | 11.0 | 12 | 25 | 75 |
| 11m0208A-21 | 12.0 | 12 | 25 | 75 |
| 11m0208A-22 | 14.0 | 16 | 35 | 100 |
| 11m0208A-23 | 16.0 | 16 | 40 | 100 |
| 11m0208A-24 | 18.0 | 20 | 40 | 100 |
| 11m0208A-25 | 20.0 | 20 | 40 | 100 |
| 11m0208A-26 | 22.0 | 22 | 40 | 100 |
| 11m0208A-27 | 25.0 | 25 | 45 | 120 |
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0208B-1 | 1.0 | 6 | 2.5 | 50 |
| 11m0208B-2 | 1.5 | 6 | 4 | 50 |
| 11m0208B-3 | 2.0 | 6 | 5 | 50 |
| 11m0208B-4 | 2.5 | 6 | 6 | 50 |
| 11m0208B-5 | 3.0 | 6 | 8 | 50 |
| 11m0208B-6 | 3.5 | 6 | 9 | 50 |
| 11m0208B-7 | 4.0 | 6 | 10 | 50 |
| 11m0208B-8 | 4.5 | 6 | 11 | 50 |
| 11m0208B-9 | 5.0 | 6 | 13 | 50 |
| 11m0208B-10 | 5.5 | 6 | 14 | 50 |
| 11m0208B-11 | 6.0 | 6 | 15 | 50 |
| 11m0208B-12 | 6.5 | 8 | 18 | 60 |
| 11m0208B-13 | 7.0 | 8 | 18 | 60 |
| 11m0208B-14 | 7.5 | 8 | 18 | 60 |
| 11m0208B-15 | 8.0 | 8 | 20 | 60 |
| 11m0208B-16 | 8.5 | 10 | 20 | 75 |
| 11m0208B-17 | 9.0 | 10 | 21 | 75 |
| 11m0208B-18 | 9.5 | 10 | 21 | 75 |
| 11m0208B-19 | 10.0 | 10 | 25 | 75 |
| 11m0208B-20 | 11.0 | 12 | 25 | 75 |
| 11m0208B-21 | 12.0 | 12 | 25 | 75 |
| 11m0208B-22 | 14.0 | 16 | 35 | 100 |
| 11m0208B-23 | 16.0 | 16 | 40 | 100 |
| 11m0208B-24 | 18.0 | 20 | 40 | 100 |
| 11m0208B-25 | 20.0 | 20 | 40 | 100 |
| 11m0208B-26 | 22.0 | 22 | 40 | 100 |
| 11m0208B-27 | 25.0 | 25 | 45 | 120 |
Carbide High Helix Endmills For Aluminium
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0209A |
Carbide High Helix Endmills For Hardness
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0210A |
Carbide Drills Short
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0211A |
Carbide Drills Long Flute
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0211B-1 | 3 | 6 | 15 | 60 |
| 11m0211B-2 | 4 | 6 | 20 | 60 |
| 11m0211B-3 | 5 | 6 | 25 | 75 |
| 11m0211B-4 | 6 | 6 | 30 | 75 |
| 11m0211B-5 | 8 | 8 | 35 | 90 |
| 11m0211B-6 | 10 | 10 | 45 | 100 |
| 11m0211B-7 | 12 | 12 | 45 | 100 |
| 11m0211B-8 | 14 | 14 | 70 | 150 |
| 11m0211B-9 | 16 | 16 | 70 | 150 |
| 11m0211B-10 | 18 | 18 | 75 | 150 |
| 11m0211B-11 | 20 | 20 | 75 | 150 |
| 11m0211B-12 | 22 | 22 | 80 | 150 |
| 11m0211B-13 | 25 | 25 | 80 | 150 |
Carbide Reamers Short
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0212A |
Carbide Reamers Long Flute
| ITEM NO. | Flu-D | Sha-D | Flu-L | Length | Price |
| 11m0212B-1 | 3 | 6 | 15 | 60 |
| 11m0212B-2 | 4 | 6 | 20 | 60 |
| 11m0212B-3 | 5 | 6 | 25 | 75 |
| 11m0212B-4 | 6 | 6 | 30 | 75 |
| 11m0212B-5 | 8 | 8 | 35 | 90 |
| 11m0212B-6 | 10 | 10 | 45 | 100 |
| 11m0212B-7 | 12 | 12 | 45 | 100 |
| 11m0212B-8 | 14 | 14 | 70 | 150 |
| 11m0212B-9 | 16 | 16 | 70 | 150 |
| 11m0212B-10 | 18 | 18 | 75 | 150 |
| 11m0212B-11 | 20 | 20 | 75 | 150 |
| 11m0212B-12 | 22 | 22 | 80 | 150 |
| 11m0212B-13 | 25 | 25 | 80 | 150 |
