Niche Rich International Corporation

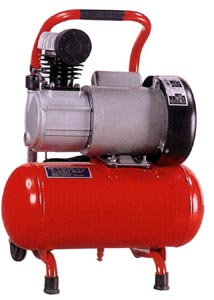

AIR COMPRESSOR

Protable type

17A0901

ITEM NO.

MOTOR

BORE x STROKE

CYLINDER

REV. SPEED
r.p.m

DISPLACE-
MENT

WORKING
PRESSURE

CAPACITY

N.W

G.W

17A0901-01

0.4KW/ 1/2HP

42mm x 38mm

1720

93 1/min

7kg/cm2

12L

430mm

630mm

22kg

24kg

17A0901-02

0.65KW/ 3/4HP

47mm x 38mm

1720

113 1/min

7kg/cm2

15L

490mm

320mm

650mm

32kg

34kg

17A0901-03

0.75KW/ 1HP

47mm x 42mm

1720

125 1/min

7kg/cm2

15L

490mm

650mm

24kg

27kg

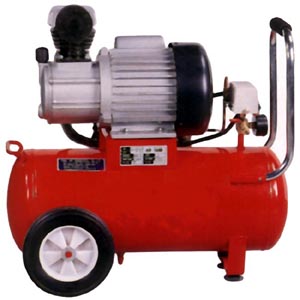

AIR COMPRESSOR

Protable type

17A0902

ITEM NO.

MOTOR

BORE x STROKE

CYLINDER

REV. SPEED
r.p.m

DISPLACE-
MENT

WORKING
PRESSURE

CAPACITY

N.W

G.W

17A0902-01

0.65KW/ 3/4HP

47mm x 38mm

1720

113 1/min

7kg/cm2

30L

640mm

335mm

600mm

36kg

38kg

17A0902-02

0.75KW/ 1HP

47mm x 42mm

1720

125 1/min

7kg/cm2

30L

640mm

335mm

600mm

28kg

30kg

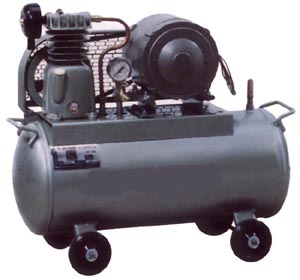

AIR COMPRESSOR

Mobile type

17A0903

ITEM NO.	MOTOR	BORE x STROKE	CYLINDER	WORKING PRESSURE	MAX PRESSURE	COMPRESS OR SPEED	DISPLACEMENT	CAPACITY OF AIR
17A0903	0.2KW/ 1/4HP	51mm x 38mm	1	5kg/cm2 70LB/in2	7kg/cm2 100LB/in2	600r.p.m.	46 1/min 1.6 ft3/min	30liter 8gal

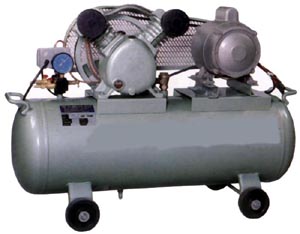

AIR COMPRESSOR

Mobile type

17A0904

ITEM NO.	MOTOR	BORE x STROKE	CYLINDER	WORKING PRESSURE	MAX PRESSURE	COMPRESS OR SPEED	DISPLACEMENT	CAPACITY OF AIR
17A0904-01	0.4KW/ 1/2HP	55mm x 45mm	1	7kg/cm2 100LB/in2	10kg/cm2 150LB/in2	1350r.p.m.	144 1/min 5.0 ft3/min	36liter 10gal
17A0904-02	0.4KW/ 1/2HP	51mm x 45mm	2	7kg/cm2 100LB/in2	10kg/cm2 150LB/in2	700r.p.m.	129 1/min 4.6 ft3/min	58liter 15gal

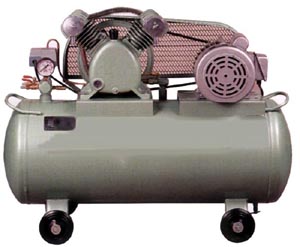

AIR COMPRESSOR

Mobile type

17A0905

ITEM NO.	MOTOR	BORE x STROKE	CYLINDER	WORKING PRESSURE	MAX PRESSURE	COMPRESS OR SPEED	DISPLACEMENT	CAPACITY OF AIR
17A0905	0.75KW/ 1HP	55mm x 49mm	2	8kg/cm2 115LB/in2	10kg/cm2 150LB/in2	500r.p.m.	115 1/min 4.1 ft3/min	88liter 23gal

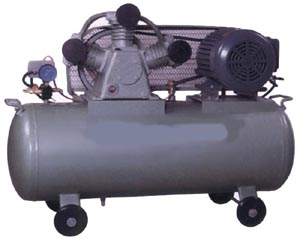

AIR COMPRESSOR

17A0906

ITEM NO.	MOTOR	BORE x STROKE	CYLINDER	WORKING PRESSURE	MAX PRESSURE	COMPRESS OR SPEED	DISPLACEMENT	CAPACITY OF AIR
17A0906-01	1.5KW/ 2HP	65mm x 49mm	2	8kg/cm2 115LB/in2	10kg/cm2 150LB/in2	715r.p.m.	232 1/min 8.2 ft3/min	88liter 23gal
17A0906-02	1.5KW/ 2HP	65mm x 45mm	3	8kg/cm2 115LB/in2	10kg/cm2 150LB/in2	670r.p.m.	300 1/min 10.6 ft3/min	95liter 25gal

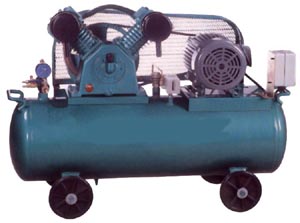

AIR COMPRESSOR

17A0907

ITEM NO.	MOTOR	BORE x STROKE	CYLINDER	WORKING PRESSURE	MAX PRESSURE	COMPRESS OR SPEED	DISPLACEMENT	CAPACITY OF AIR
17A0907	2.2KW/ 3HP	82mm x 65mm	2	8kg/cm2 115LB/in2	10kg/cm2 150LB/in2	760r.p.m.	522 1/min 18.4 ft3/min	129liter 34gal

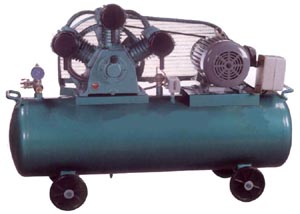

AIR COMPRESSOR

17A0908、17A0909、17A0910

ITEM NO.	MOTOR	BORE x STROKE	CYLINDER	WORKING PRESSURE	MAX PRESSURE	COMPRESS OR SPEED	DISPLACEMENT	CAPACITY OF AIR
17A0908	3.7KW/ 5HP	80mm x 60mm	3	8kg/cm2 115LB/in2	10kg/cm2 150LB/in2	715r.p.m.	647 1/min 22.9 ft3/min	155liter 41gal
17A0909	5.5KW/ 7 1/2HP	95mm x 75mm	3	8kg/cm2 115LB/in2	10kg/cm2 150LB/in2	750r.p.m.	1200 1/min 42.0 ft3/min	280liter 74gal
17A0910	7.5KW/ 10HP	100mm x 70mm	3	8kg/cm2 115LB/in2	10kg/cm2 150LB/in2	900r.p.m.	1600 1/min 56.5 ft3/min	300liter 80gal

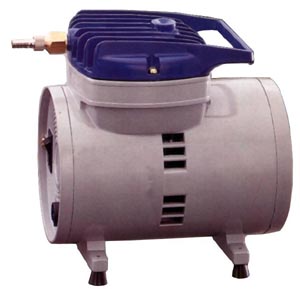

MINI AIR COMPRESSOR

ITEM NO.	VOLT	CYCLE	AMP	HP	RPM	MAX PRESSURE	DISPLACEMENT
17A0951-01	110V	60HZ	1.4A	1/10HP	1700 r/min	30psi	2.0cfm
17A0951-02	220V	50HZ	0.6A	1/10HP	1400 r/min	30psi	2.0cfm
17A0951-03	240V	50HZ	0.57A	1/10HP	1400 r/min	30psi	2.0cfm

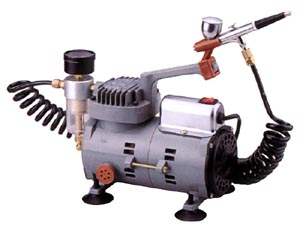

MINI AIR COMPRESSOR

ITEM NO.	VOLT	CYCLE	AMP	HP	RPM	MAX PRESSURE	DISPLACEMENT
17A0952-01	110V	60HZ	0.6A	1/8HP	1400 r/min	30psi	2.0cfm
17A0952-02	220V	50HZ	0.6A	1/8HP	1400 r/min	30psi	2.0cfm

MINI AIR COMPRESSOR

ITEM NO.	VOLT	CYCLE	AMP	HP	RPM	MAX PRESSURE	DISPLACEMENT
17A0953-01	110V	60HZ	0.7A	1/8HP	1700 r/min	18psi	2.0cfm
17A0953-02	220V	50HZ	0.7A	1/8HP	1400 r/min	18psi	2.0cfm
17A0953-03	240V	50HZ	0.7A	1/8HP	1400 r/min	18psi	2.0cfm

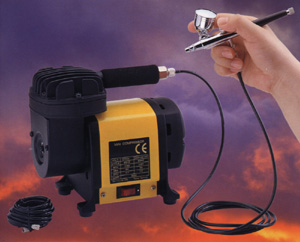

MINI AIR COMPRESSOR

ITEM NO.	VOLT	CYCLE	AMP	HP	RPM	DBA	DISPLACEMENT
17A0954-01	110V	60HZ	0.6	60HZ	1740 r/min	60	1.7cfm
17A0954-02	220V	50HZ	0.35	50HZ	1450 r/min	58	1.6cfm
17A0954-03	240V	50HZ	0.33	50HZ	1450 r/min	58	1.6cfm

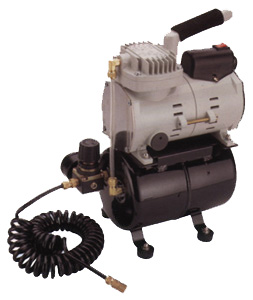

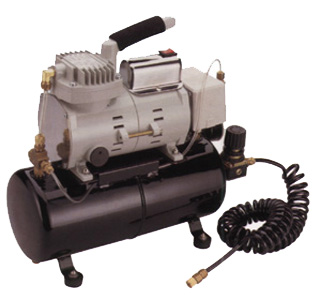

MINI AIR COMPRESSOR

17A0955-01

17A0955-02

2 LITTERS MINI AIR COMPRESSOR
HALF-AUTOMATIC
VOLT: 110V, 110V, 220V, 240V
95W
MAX. PRESSURE: 3 KGS

2.1/2 LITTERS MINI AIR COMPRESSOR
AUTOMATIC
VOLT: 110V, 110V, 220V, 240V
95W
MAX. PRESSURE: 3 KGS - 3.5 KGS

ITEM NO.	WEIGHT
17A0955-01	5.7kg
17A0955-02	6.8kg

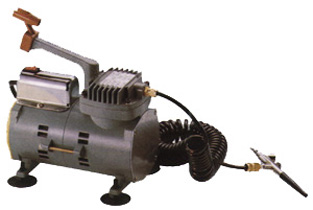

MINI AIR COMPRESSOR

17A0956-01

17A0956-02

2 LITTERS MINI AIR COMPRESSOR
HALF-AUTOMATIC
VOLT: 110V, 110V, 220V, 240V
95W
40 PSI
MAX. PRESSURE: 3 KGS

2.1/2 LITTERS MINI AIR COMPRESSOR
AUTOMATIC
VOLT: 110V, 110V, 220V, 240V
95W
40 PSI
MAX. PRESSURE: 4 KGS

ITEM NO.	WEIGHT
17A0956-01	3.8kg
17A0956-02	6.8kg

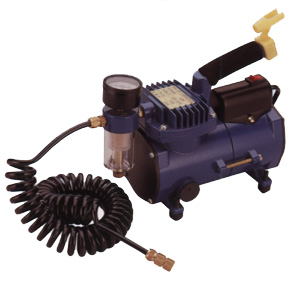

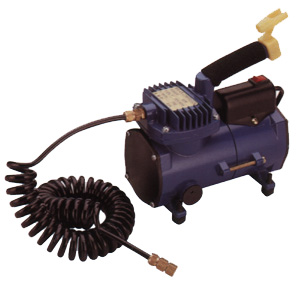

MINI AIR COMPRESSOR

VOLT: 110V, 110V, 220V, 240V, 60HZ 50HZ
65W
30 PSI
1700 R/MIN.
AMP 0.6A


17A0957-01	17A0957-02

ITEM NO.	DESCRIPTION	WEIGHT
17A0957-01		3.1kg
17A0957-02	With Filter & Gauge	3.5kg

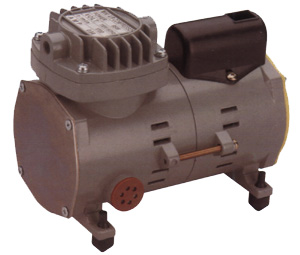

MINI AIR COMPRESSOR

VOLT: 110V, 110V, 220V, 240V, 60HZ 50HZ
95W
1700 R/MIN.
AMP 0.8A
55cmHg

ITEM NO.	DESCRIPTION	WEIGHT
17A0958		3.3kg
