MINI DIE GRINDER
Specifications:
Free Speed: 25,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons. : 14CFM
Overall Length: 6-5/16"(160m/m)
Exhaust system: Rear
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1201 | 1/4" | Color box | 10pc | 20pc | 10.5kg | 0.45' |
MEDIUM DIE GRINDER
Specifications:
Free speed: 22,000 RPM
Collet size: 1/4" Or 6m/m
Air Inlet: 1/4"-PT
Air Pressure: 90PSI
Avg. Air Cons.: 16CFM
Overall length: 6-7/8"(175m/m)
Exhaust system: Rear
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1202 | 1/4" | Color box | 1pc | 20pc | 14kg | 0.6' |
MINI DIE GRINDER
Specifications:
Free speed: 25,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons.: 14CFM
Overall length: 4-3/4"(120m/m)
Exhaust system: Front
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1203 | 1/4" | Color box | 1pc | 20pc | 9.5kg | 0.45' |
RIGHT ANGLE DIE GRINDER
Specifications:
Free speed: 20,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons.: 14CFM
Overall length: 6-5/16"(160m/m)
Exhaust system: Rear
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1204 | 1/4" | Color box | 1pc | 20pc | 14kg | 1' |
RIGHT ANGLE DIE GRINDER
Specifications:
Free speed: 20,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons.: 14CFM
Overall length: 4-7/8"(124m/m)
Exhaust system: Front
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1205 | 1/4" | Color box | 1pc | 20pc | 13kg | 0.45' |
RIGHT ANGLE DIE GRINDER
Specifications:
Free speed: 20,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons.: 14CFM
Overall length: 6-5/16"(160m/m)
Exhaust system: Rear
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1206 | 1/4" | Color box | 1pc | 20pc | 14kg | 1' |
EXTENDED DIE GRINDER
Specifications:
Free speed: 25,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons.: 14CFM
Overall length: 7-1/2"(190m/m)
Exhaust system: Rear
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1207 | 1" | Color box | 1pc | 20pc | 13kg | 0.5' |
EXTENDED DIE GRINDER
Specifications:
Free speed: 25,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons.: 14CFM
Overall length: 9-1/4"(235m/m)
Exhaust system: Rear
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1208 | 3" | Color box | 1pc | 20pc | 14.6kg | 0.6' |
EXTENDED DIE GRINDER
Specifications:
Free speed: 25,000 RPM
Collet size: 1/4" or 6m/m
Air Inlet: 1/4"-PT
Air pressure: 90PSI
Avg. Air Cons.: 14CFM
Overall length: 11-1/4"(285m/m)
Exhaust system: Rear
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 17A1209 | 5" | Color box | 1pc | 20pc | 16.5kg | 0.7' |

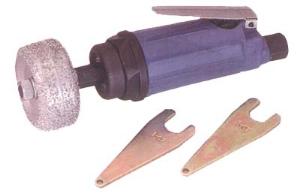

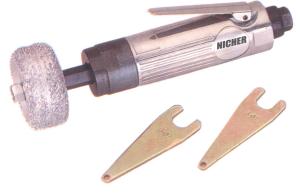

HIGH SPEED TIRE BUFFER
| Speed (R.P.M.) 18,000 | Air pressure 90psi
|
| Air inlet (N.P.T.) 1/4" | Air consumption 4cfm
|
| Minimum Hose size 3/8"
|
