RECHARGEABLE SCREWDRIVER
Contents:
1-Rechargeable Screwdriver:
2.4V or 3.6V
1-Adapter
2-Double Ends Bits:
Phillips: NO.1-3/16" (5mm)
Slotted: NO.2-1/4" (6mm)
1-Battery Pack
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 18C1201-01 | 2.4V | Double Blister | | 24set | 23kg | 2.9' |
| 18C1201-02 | 3.6V | Double Blister | | 24set | 23kg | 2.9' |

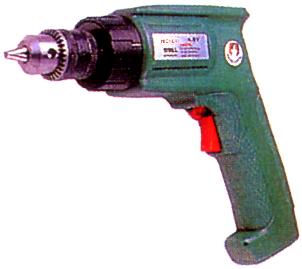

CORDLESS DRILL/DRIVER
No Load Speed: 470 r.p.m.
Charging Time: 3 Hours
Chuck Capacity: Wood 15mm
Steel 10mm
MAX. Torque: 45 kg/cm
Clutch: 6 Sections
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 18C1202 | 4.8V | Color Box | | | | |
CORDLESS DRILL/DRIVER
No Load Speed: 7.2V 9.6V 12V
500 600 620
Charging Time: 1 hr 1 hr 1 hr
MAX.Torque: 85 95 105 kg/cm
Clutch: 6 4 4 Section
Chuck Capacity: Wood 15mm
Steel 10mm
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 18C1203-01 | 7.2V | Color Box | | | | |
| 18C1203-02 | 9.6V | Color Box | | | | |
| 18C1203-03 | 12V | Color Box | | | | |

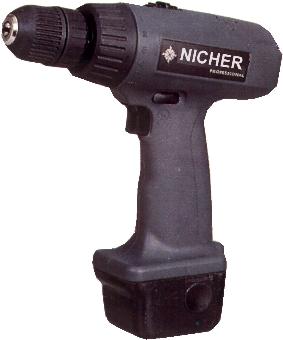

CORDLESS DRILL
*Compact size & adjustable 6-Level clutch control
No Load Speed: 9.6V 12V 14.4V 18V
Low: 250 350 400 800
high: 800 1000 1200 1200
MAX.Torque: 125 160 215 215 kgf/cm
Power Output: 120 160 200 200 watts
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 18C1204-01 | 9.6V | Color Box | | | | |
| 18C1204-02 | 12V | Color Box | | | | |
| 18C1204-03 | 14.4V | Color Box | | | | |
| 18C1204-04 | 4.18V | Color Box | | | | |

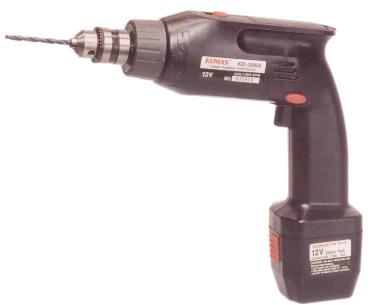

10MM CORDLESS DRILL
Contents:
4.8V 700 r.p.m.
7.2V 600 r.p.m.
9.6V 350/1000 r.p.m.(2 SPEED)
12V 400/1200 r.p.m.(2 SPEED)
Charging time: 1H/3-5H
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 18C1205-01 | 4.8V | Color Box | | | | |
| 18C1205-02 | 7.2V | Color Box | | | | |
| 18C1205-03 | 9.6V | Color Box | | | | |
| 18C1205-04 | 12V | Color Box | | | | |

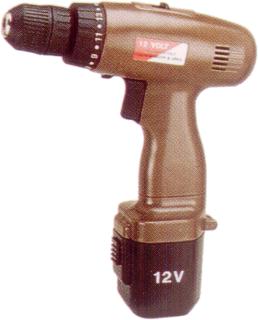

CORDLESS DRILL/DRIVER
| Description | 7.2V | 9.6V | 12V | 14.4V |
| No Load Speed Low | 0~600 | 0~350/0~1000 | 0~350/0~1000 | 0~400/0~1200 |
| Maximum Torque | 75kg-cmv110/150kg-cmv140/200kg-cm | 160/240kg-cm |
| Clutch Setting | 16 | 16 | 16 | 16 |
| Chuck Size | 3/8" | 3/8" | 3/8" | 3/8" |
| Weight | 1.4kg | 1.5g | 1.6kg | 1.72kg |
| ITEM NO. | DESCRIPTION | PRESENTATION | INNER | MASTER | G.W. | CUFT |
| 18C1206-01 | 7.2V | Color Box | | | | |
| 18C1206-02 | 9.6V | Color Box | | | | |
| 18C1206-03 | 12V | Color Box | | | | |
| 18C1206-04 | 14.4V | Color Box | | | | |
